The façade treatment
Gloss-black ACM panels create a continuous high-contrast field across the upper building elevation.
Sydney project · External building signage
EDA external ACM signage with 3D PVC cut-outs.
A Sydney façade project combining gloss-black ACM panels with dimensional PVC logo forms, CNC-router cut, finished in yellow two-pack paint and installed at height by the Platinum Signs crew.
Sydney project · Produced, finished and site installed by Platinum Signs

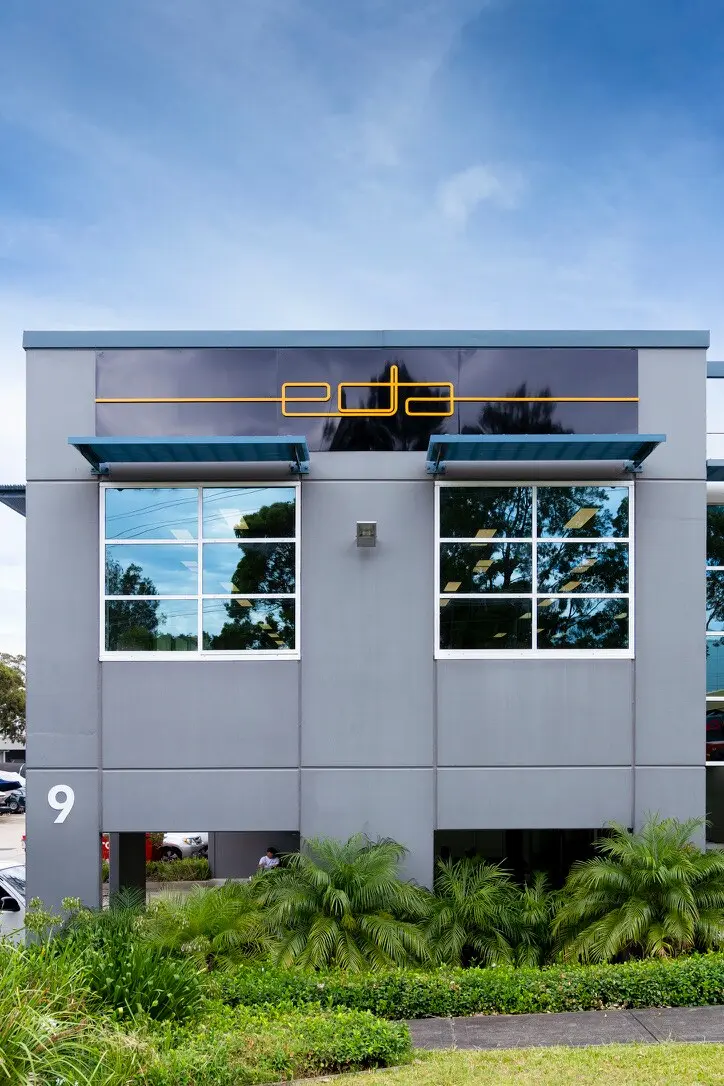

Finished façade
Gloss-black ACM with CNC-routed, two-pack-painted PVC branding.
- Location
- Sydney, NSW
- Panel system
- External ACM panels
- Brand detail
- 3D PVC cut-outs
- Finish & delivery
- Two-pack painted · site installed
The project in detail
From Sydney site setup to the finished elevation.
Seven deliberately different photographs document the site setup, component detail, panel preparation, lifting, façade fitting and completed building sign.
Similar vehicle, access and near-complete angles were removed. Each remaining photograph contributes a different part of the Sydney project story.
Project at a glance
One façade system, resolved from component to installation.
The project pairs a long, reflective black panel field with yellow dimensional branding. The material contrast, routed forms and careful set-out do the visual work without adding unnecessary elements.
The dimensional identity
EDA's logo forms were CNC-router cut from PVC, then two-pack painted in yellow before installation.
The site delivery
The sign panels were checked and prepared at ground level, lifted by boom and fitted to the Sydney façade.
How it came together
A coordinated panel, finish and installation workflow.
The strongest project pages show the work, not just the final photograph. These four stages explain what the EDA image set demonstrates without inventing unverified dimensions or fixing details.
Read the four delivery stages
- 1
Panel and logo set-out
The black ACM field and dimensional PVC forms were prepared as one coordinated façade composition.
- 2
CNC-router-cut PVC
The EDA wordmark and line elements were routed as clean, repeatable three-dimensional forms.
- 3
Two-pack painted finish
The routed PVC components received the specified yellow two-pack finish before being fitted to the panels.
- 4
Access and installation
The crew used elevated access to lift, align and secure the completed sign system across the building elevation.
Project anatomy
Why ACM, routed PVC and a painted finish work together.
Each part has a clear job in the finished sign. The panel field carries the composition, the routed elements create depth, and the painted finish establishes the brand colour.
External ACM panels
A rigid, flat panel system creates the continuous gloss-black background seen across the façade.
Explore ACM signsCNC-routed PVC forms
Expanded PVC can be supplied in substantial thicknesses, giving the router-cut EDA logo and line components a strong dimensional profile before finishing.
See CNC router cuttingTwo-pack painted colour
The routed PVC components were finished in yellow two-pack paint to carry the brand colour over the black field.
Explore 3D letteringMaterial decision
Why expanded PVC instead of metal?
For this EDA façade, CNC-routed expanded PVC created a thick, dimensional appearance comparable to fabricated metal 3D components at the installed viewing distance, while fitting the client's tighter budget.
Expanded PVC can be specified in substantial thicknesses, shaped cleanly and two-pack painted. Metal can still be the better specification where larger spans, harsher exposure, fixing, compliance or long-term performance requirements call for it.
Technical detail
The deeper project information, available when useful.
The main story stays visual and easy to scan. Open these sections for the delivered scope, the evidence in the photography and the specifications that still need a site-specific review.
The confirmed scope shown and described on this page includes the following project elements.
- External gloss-black ACM sign panels
- Three-dimensional PVC EDA logo and line cut-outs
- CNC router cutting of the PVC components
- Yellow two-pack painted finish

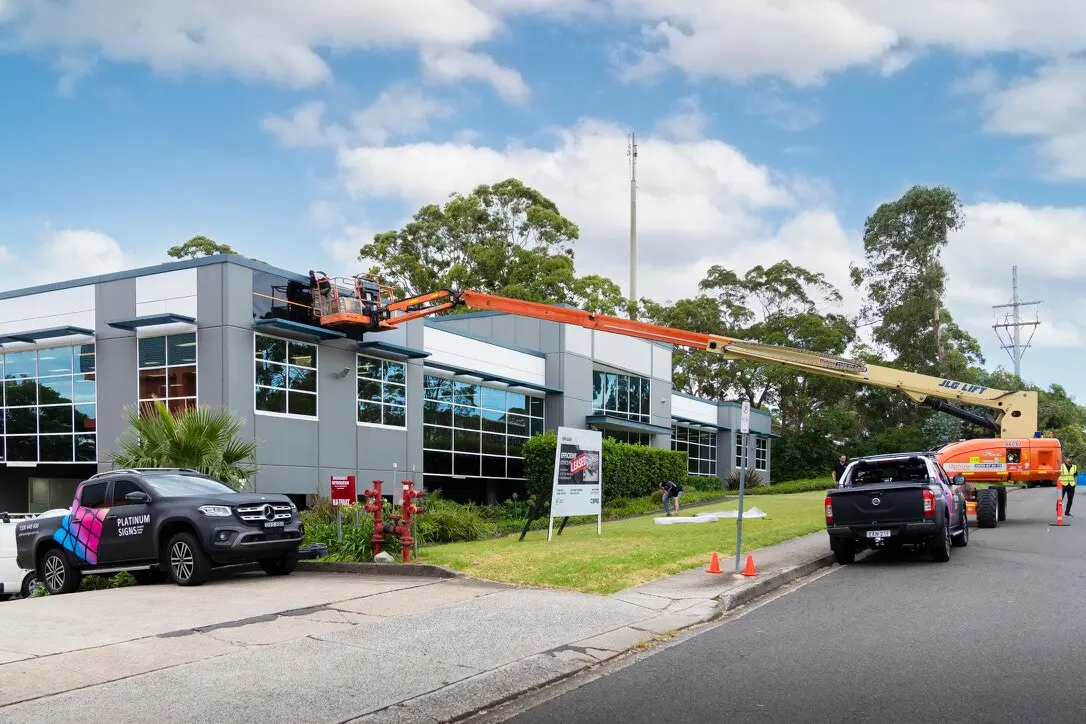

- Sydney site preparation, elevated access and installation
The photo set documents the real delivery conditions rather than presenting a rendered concept.

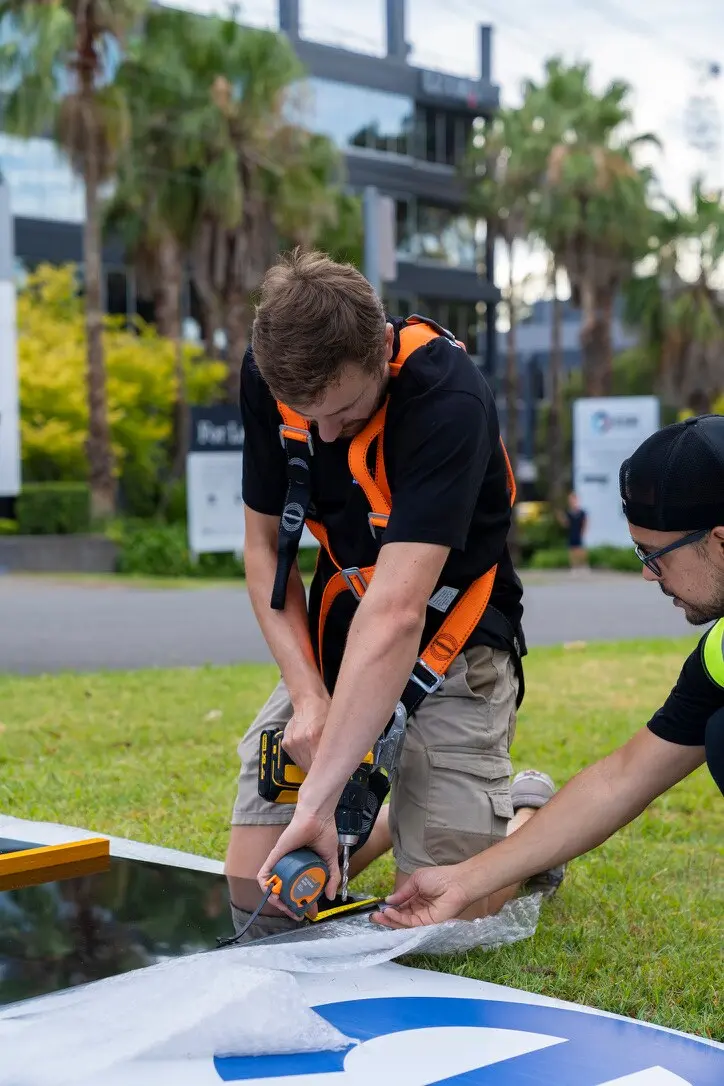

- Ground-level measurement and panel preparation

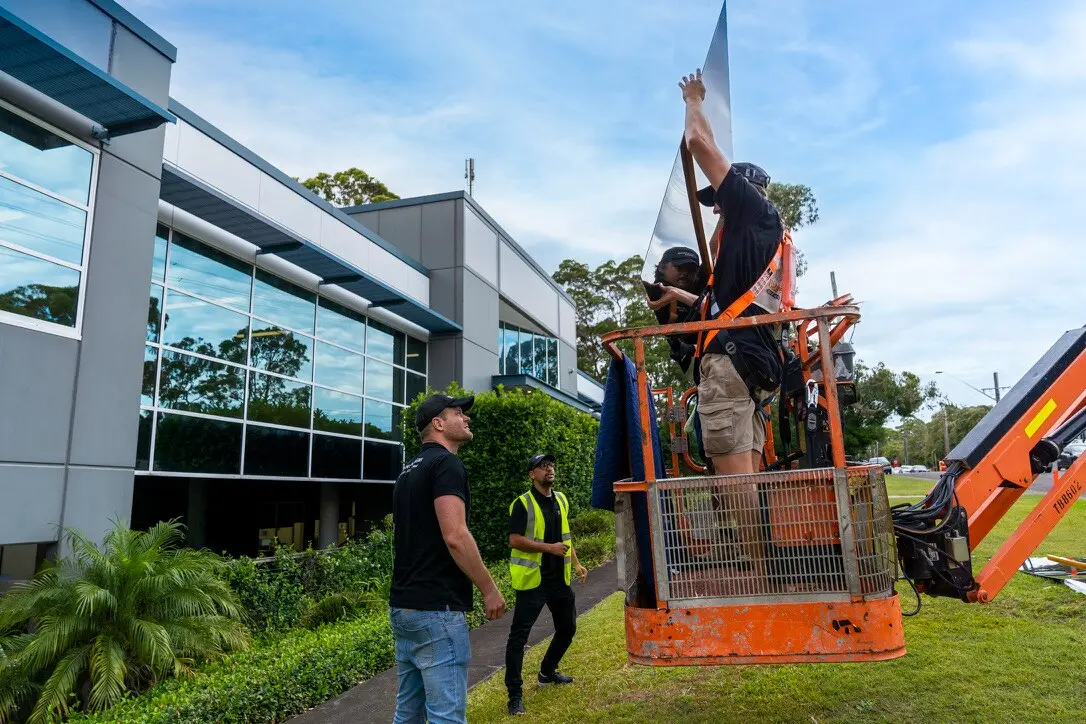

- Handling a large ACM panel into the boom-lift basket
- Crew coordination at ground and façade level

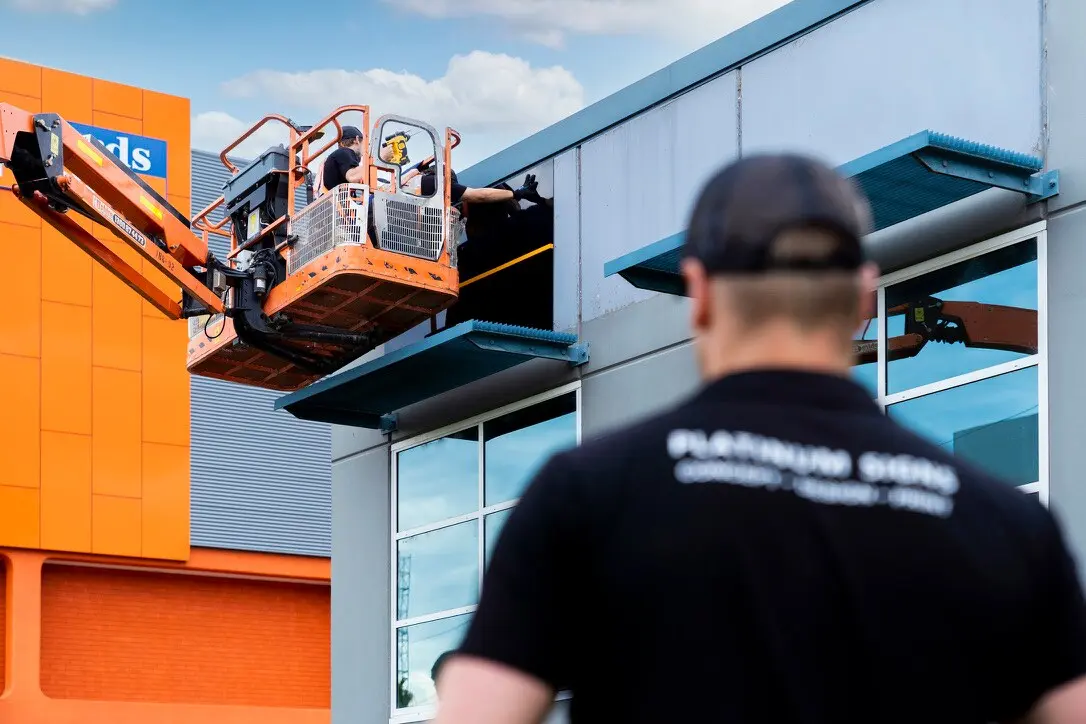

- Alignment and fitting across the upper building elevation
- The completed sign in wide and close architectural views
A similar build should be quoted from the actual site and artwork. The EDA photographs do not establish every production specification.
- Panel dimensions, seams and ACM finish
- PVC thickness and component construction
- Existing substrate and fixing requirements
- Access equipment, permits and installation window
- Colour reference, sample approval and rollout quantities
Sydney proof · National capability
A one-site result that can inform a coordinated national rollout.
This EDA installation was completed in Sydney. For multi-site work, Platinum Signs can scope a repeatable signage system and coordinate production and installation nationally, while checking every location for dimensions, substrate, access and programme requirements.
- One approved artwork and finish standard
- Site-by-site survey and access checks
- Coordinated production, staging and installation
Prepare a useful brief
What to send for a similar external signage project.
A clear first brief lets the team check material fit, panel breaks, fabrication, access and installation before pricing.
Read the four-point quoting checklist
- 1
Façade photographs
Include a straight-on view, wider site context and any known access restrictions.
- 2
Approximate dimensions
Send an elevation, marked-up photograph or the main available width and height.
- 3
Brand artwork
Supply the logo files and any colour or finish references already approved.
- 4
Sites and programme
For rollouts, include the location list, target sequence and required completion window.
Frequently asked questions
Questions this project usually raises.
Practical answers for a similar external sign, a different façade or a multi-site rollout.
It achieved a thick, dimensional appearance comparable to fabricated metal 3D components at the installed viewing distance, while fitting the client's tighter budget. Expanded PVC can be CNC-routed in substantial thicknesses and two-pack painted. The right material still depends on size, exposure, fixing, compliance, service-life requirements and budget; fabricated metal may be specified where those requirements justify it.
Yes, subject to the new façade, artwork, panel size, substrate, access and fixing requirements. The visual language can be similar while the engineering and set-out remain site specific.
Send façade photographs, approximate dimensions or elevations, vector logo artwork, preferred colours and finishes, site address and any access or timing constraints. A site measure may still be required before production.
Yes. National rollout projects can be scoped around one approved signage standard, then coordinated with site-by-site dimension, substrate, access and installation checks. The EDA page documents a Sydney project, not a national rollout.
