Main regulatory signs
Nineteen 1050mm × 650mm panels — UV printed, wrapped in high-visibility reflective film, backs spray-painted black.
Sydney project · Marine-grade regulatory signage
Sixty-four signs built to argue with salt water.
A waterfront residential wharf needs signage that regulates bikes, boards, fishing and load limits — and survives sea spray doing it. For Sydney Wharf Apartments on the Pyrmont waterfront, Platinum Signs laser-cut, printed, clear-coated and installed a five-family program of sixty-four aluminium signs across the boardwalk, poles and water's edge.
Pyrmont waterfront · laser cut, printed, coated and installed by Platinum Signs

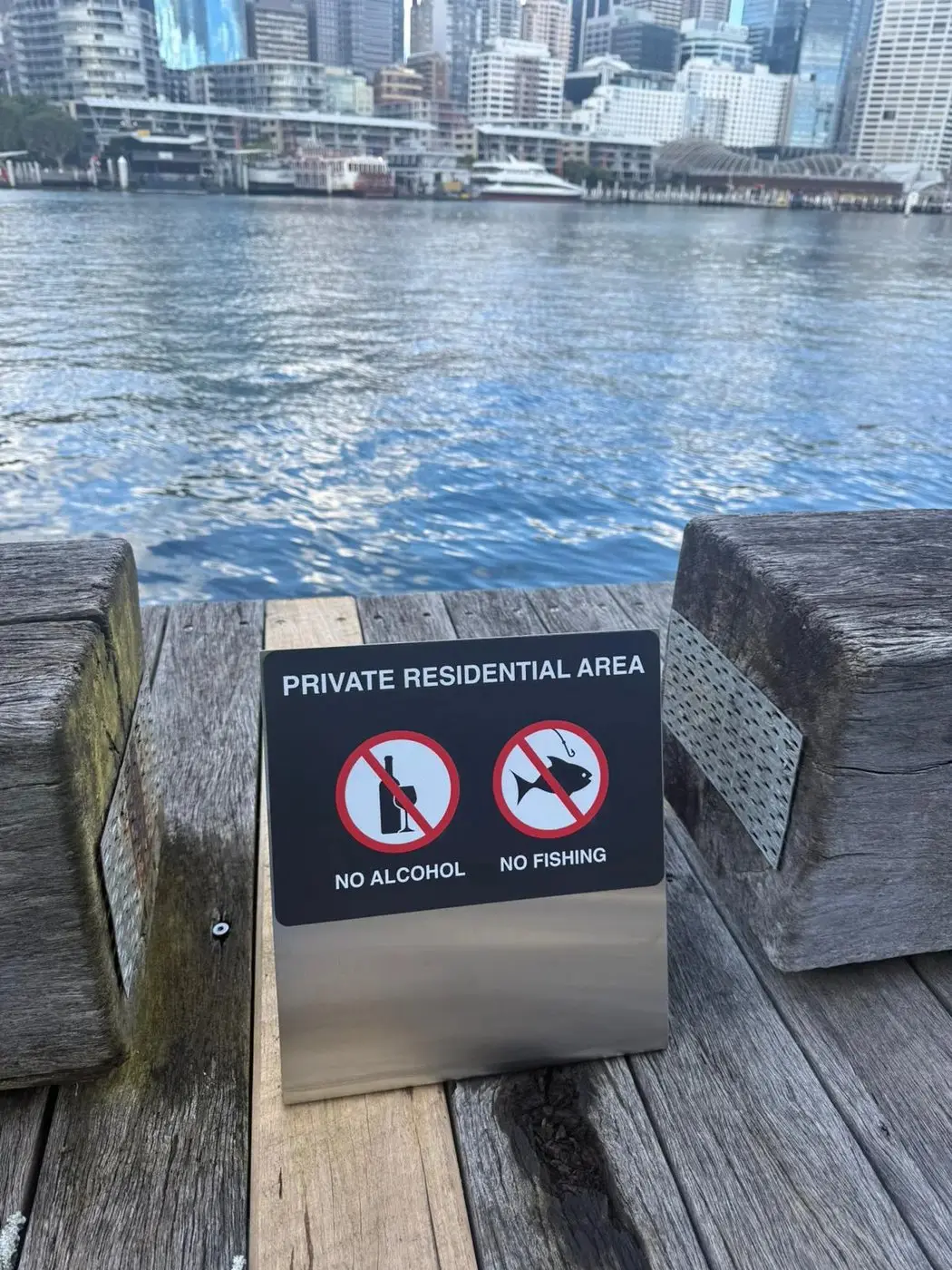

Regulatory sign, harbour behind
One of nineteen main regulatory signs — reflective film over laser-cut aluminium, on the water.
- Location
- Pyrmont waterfront, NSW
- Scope
- 64 signs across 5 families
- Build
- Laser-cut 2mm aluminium
- Protection
- Polyurethane clear coat
The project in detail
On the bed, on the poles, on the water.
Eight photographs follow the program from production through installation along the wharf — with the harbour never far from the frame.
Survey markups and packing shots were excluded. The photographs show production panels and installed signs in their final positions.
Project at a glance
Five sign families, one marine specification.
Every sign in the program shares the same bones — fibre-laser-cut 2mm aluminium with a polyurethane clear coat against sea-water erosion — then each family takes the finish its job demands.
Behavioural clusters

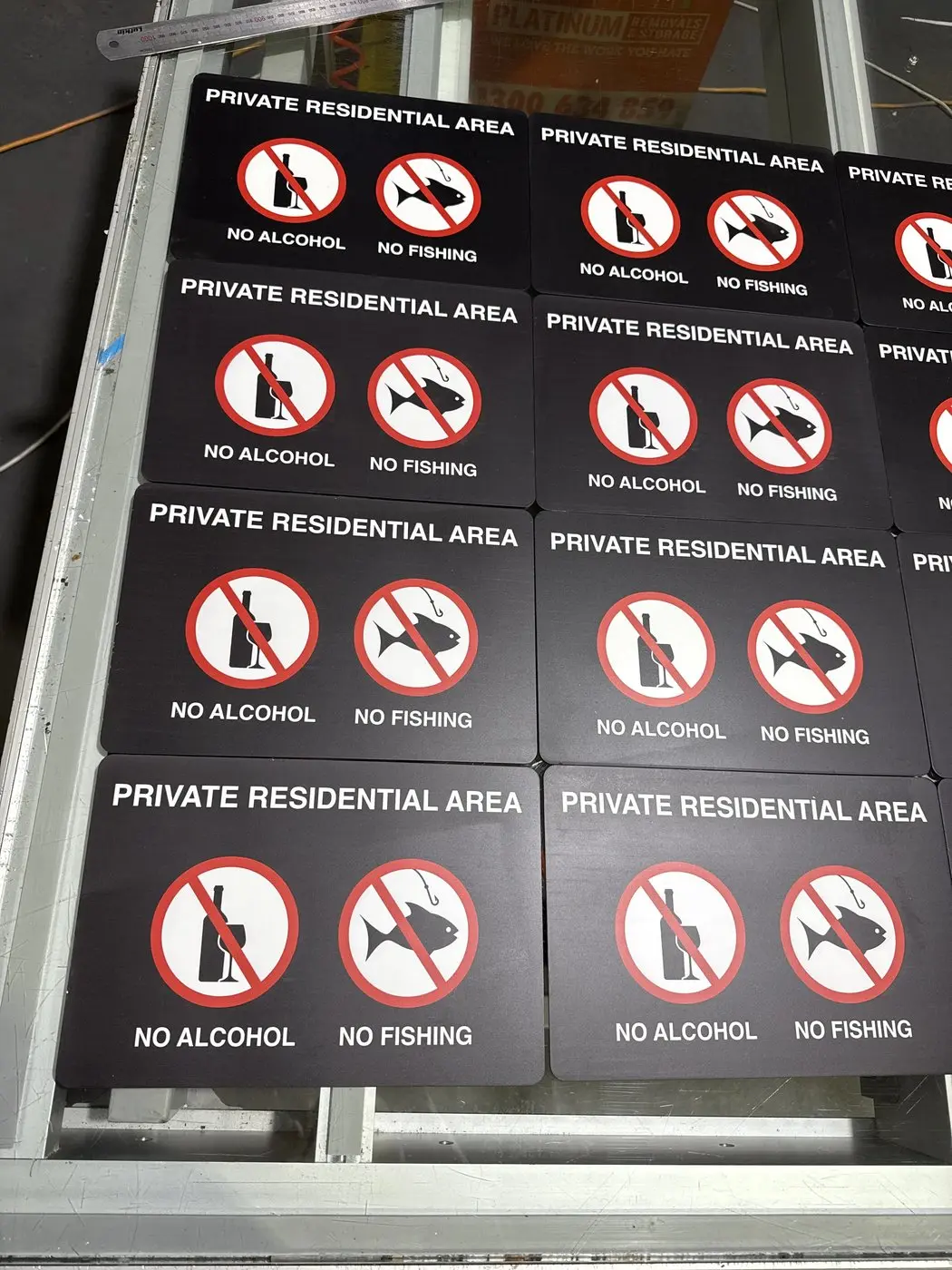

Thirty-nine no-fishing and no-alcohol panels in black and white colourways, reflective-laminated at 300mm × 200mm, plus four larger 750mm × 450mm panels.

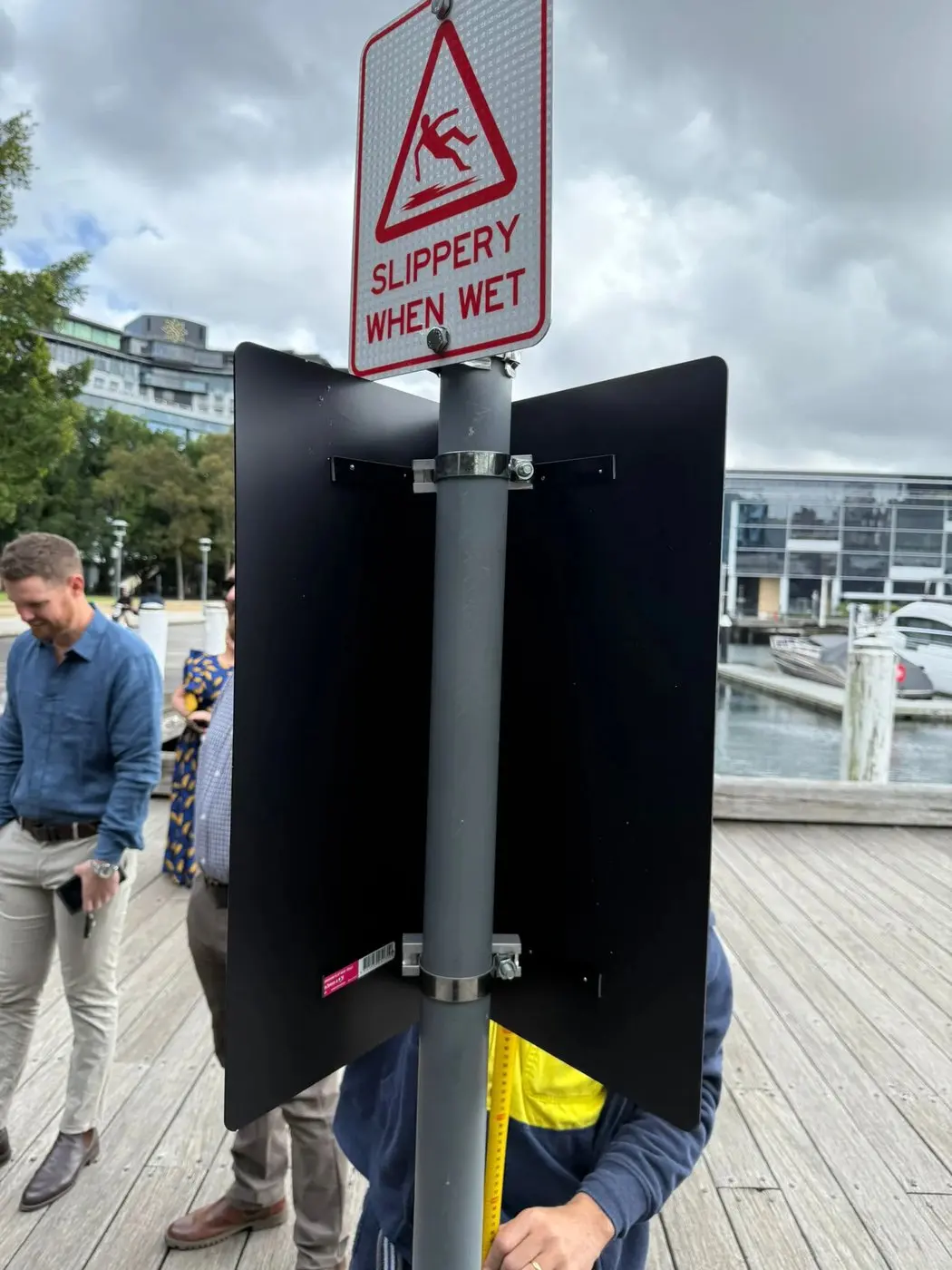

Folded L-shape signs
Six pedestrian-access signs folded at 45 degrees so one panel reads from two directions along the boardwalk.
How it came together
From site survey to salt-proof signage.
Marine signage fails at the edges first — cut faces, fixings and coatings all meet weather that inland signs never see. The program was engineered for its environment from the first site walk.
Read the four delivery stages
- 1
Survey the wharf
Poles, rails and sight lines were measured on site, sign by sign, so every panel and fixing suited the position it was made for.
- 2
Cut and print
Panels were fibre-laser cut from 2mm aluminium, then UV printed or wrapped in high-visibility reflective film depending on the family.
- 3
Coat for the sea
Every sign received a polyurethane clear coat to resist sea-water erosion, with backs spray-painted black for a finished look from every angle.
- 4
Install in stages
Crews installed across three staged visits, working pole by pole along the boardwalk with marine-grade fixings.
Project anatomy
A specification written by the harbour.
Salt spray, UV and constant public contact set the spec. Each layer of the build answers one of them.
Fibre-laser-cut aluminium
2mm marine-friendly aluminium, cut clean on the fibre laser — no rusting steel edges, no delaminating composite.
View laser cuttingReflective film + UV print
High-visibility reflective film with lamination keeps regulatory messages legible at night; UV printing carries the detailed panels.
View safety signsPolyurethane clear coat
A clear polyurethane topcoat over every panel resists sea-water erosion — the difference between a two-year sign and a ten-year one.
View wayfinding signsMaterial decision
Why laser-cut aluminium instead of printed composite?
Composite panels and vinyl-only builds are cheaper on day one, but a wharf punishes them — swollen edges, peeling film, corroded fixings. Solid 2mm aluminium with sealed, clear-coated faces keeps its edge finish in salt air, and the folded L-shape family is only possible in solid metal.
Backs were spray-painted black across the program — on a boardwalk, the back of a sign is seen as often as the front.
Budgeting a waterfront program
What drives the cost of marine-grade signage.
Waterfront programs are priced per family and per position rather than per sign alone. The main drivers are:
- How many sign families and total positions the precinct needs
- Reflective film versus standard print per family
- Protective coating specification for the exposure level
- Folded and shaped panels versus flat panels
- Mounting hardware and staged installation on public walkways
Send your rules list and route photos for a program-specific quote — exposure and mounting conditions change scope materially between waterfronts.
Technical detail
The deeper project information, available when useful.
The main story stays visual and easy to scan. Open these sections for the delivered scope, the evidence in the photography and the specifications that still need a site-specific review.
The confirmed scope shown and described on this page includes the following elements.
- Nineteen main regulatory signs — 1050mm × 650mm, reflective film, UV print, black-painted backs
- Thirty-five clustered behavioural signs at 300mm × 200mm in black and white colourways
- Four larger behavioural panels at 750mm × 450mm
- Six L-shape pedestrian-access signs folded at 45 degrees, 600mm × 300mm
- Polyurethane clear coat across the program against sea-water erosion
- Marine fixings and staged installation across three visits, plus a later packaged delivery of additional panels
The photo set documents the program through production and installed on the wharf.

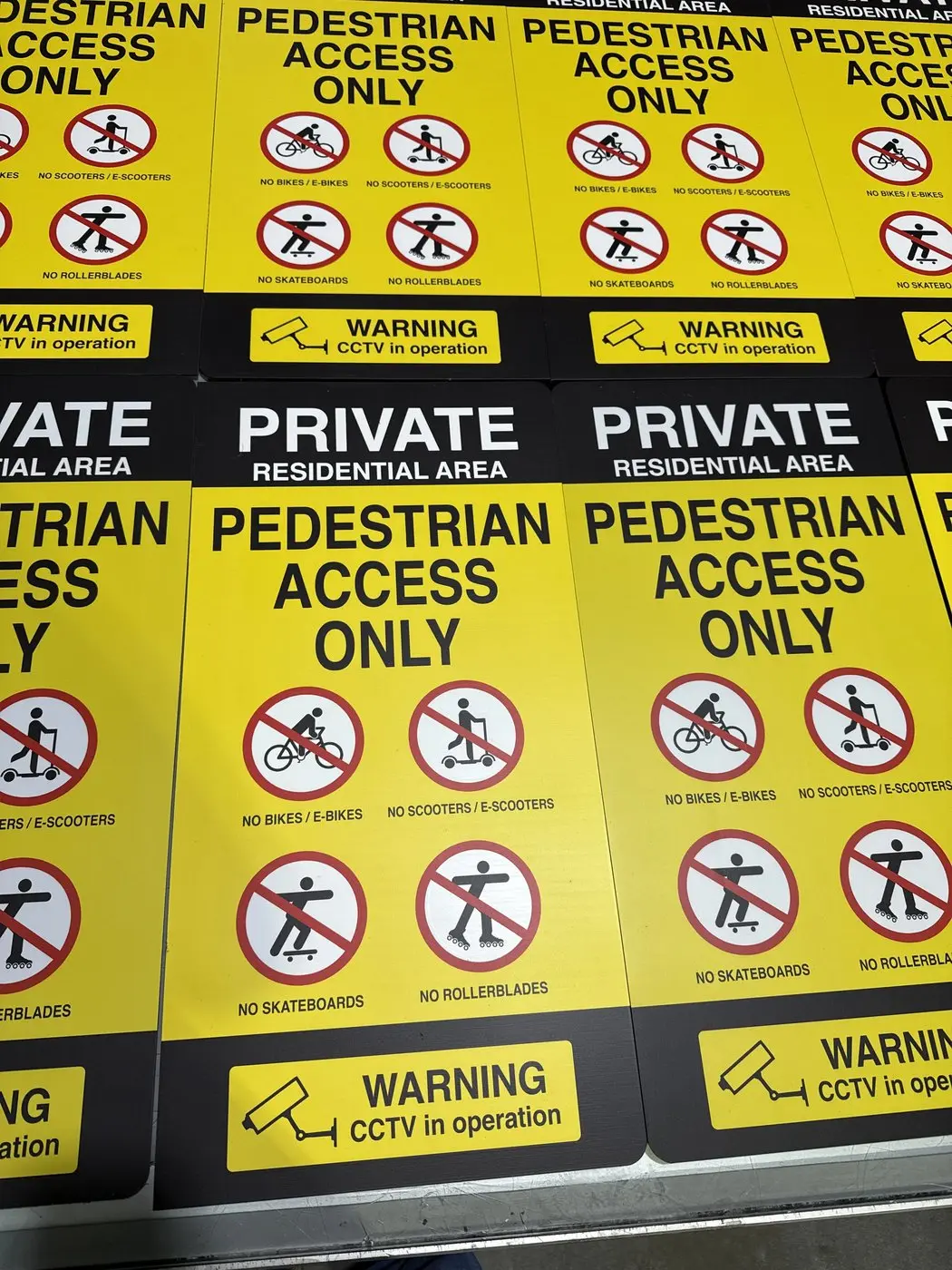

- Panel families finished in production before delivery

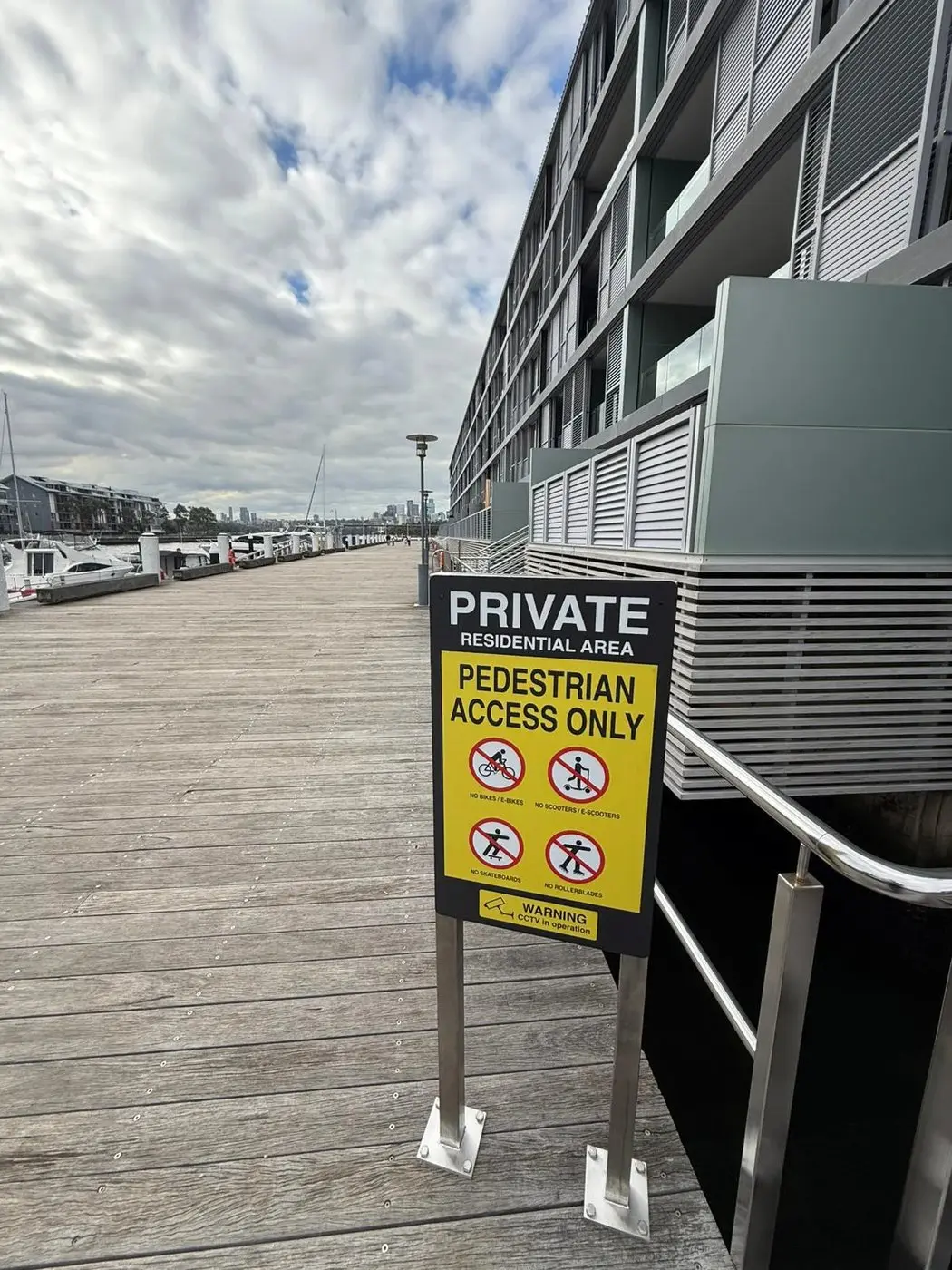

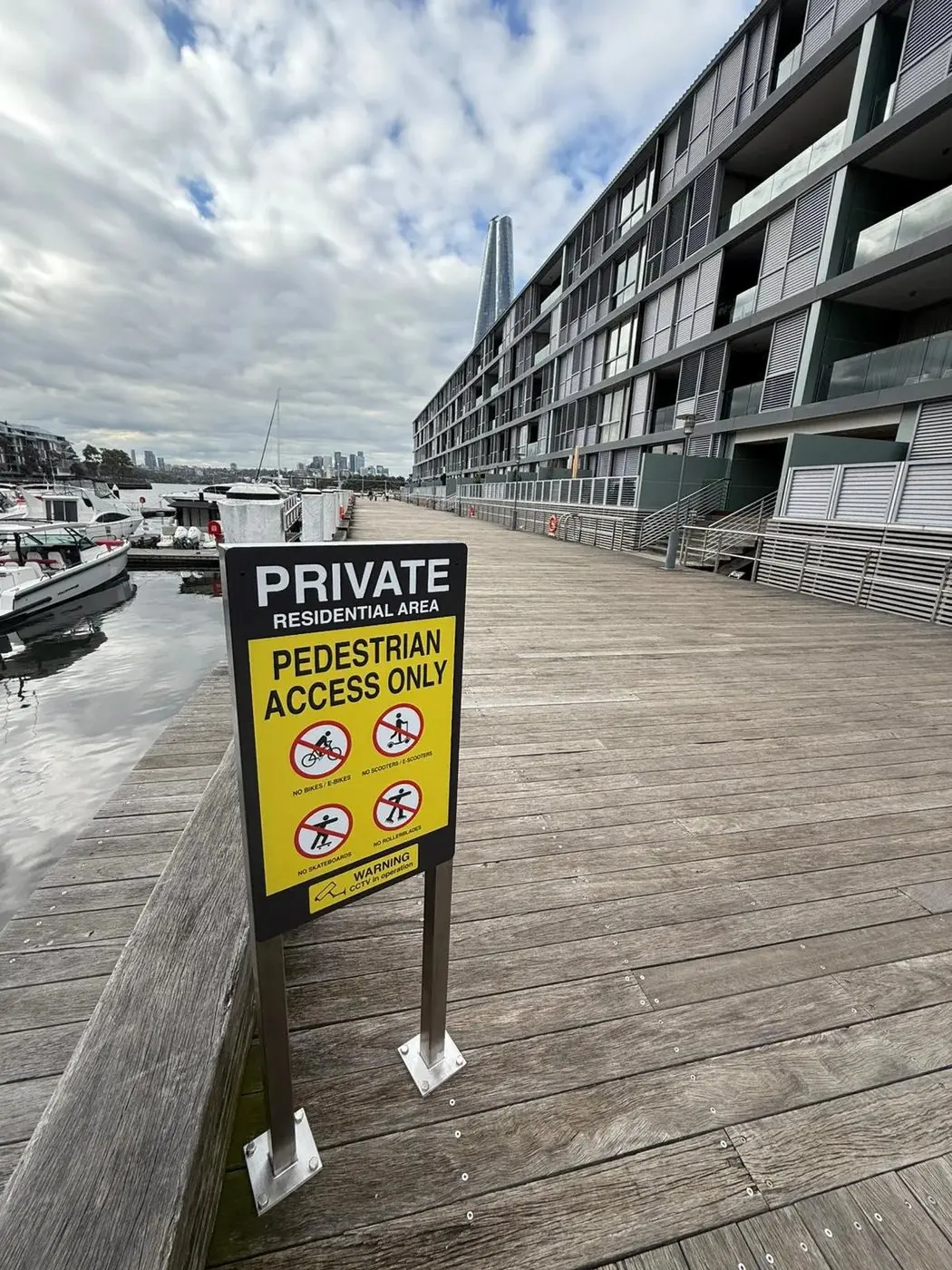

- Signs installed on poles, posts and water-edge positions along the boardwalk
- The folded L-shape design reading in both directions
- The marine setting the specification was built for — boats, salt water and open weather
A comparable waterfront program should be scoped from its own site and rules.
- The behaviours and rules the strata or operator actually needs signed
- Mounting positions — poles, rails, decks — and the fixings each can take
- Reflectivity requirements for night-time legibility
- Exposure level: open harbour, marina or sheltered waterway
- Council or maritime authority requirements where they apply
Sydney proof · Marine capability
Waterfront signage that outlasts the weather.
This program was delivered for Sydney Wharf Apartments on the Pyrmont waterfront — surveyed, laser cut, printed, coated and installed by Platinum Signs, with follow-up panels supplied as the precinct's needs grew. The same marine specification suits marinas, wharves, waterfront strata and harbourside venues Australia-wide.
- Five sign families on one shared marine spec
- Cut, printed and coated in-house
- Staged installation along a live public boardwalk
Prepare a useful brief
What to send for a waterfront signage program.
Marine programs are scoped from the site and the rules it must carry — both matter before any pricing.
Read the four-point quoting checklist
- 1
The rules to sign
Every behaviour the precinct regulates — access, fishing, alcohol, load limits, wheeled traffic — even as a rough list.
- 2
Photos along the route
Walk the wharf and photograph each position a sign might live, including the pole or surface it would fix to.
- 3
Exposure notes
How close signs sit to the water, and whether the site is open harbour or sheltered.
- 4
Access and timing
Public-use patterns and any body-corporate or building-management approvals installation must work around.
Frequently asked questions
Questions this project usually raises.
Practical answers for strata managers and waterfront operators planning precinct signage.
The whole stack, not one material: corrosion-resistant aluminium rather than steel, sealed print and film layers, a polyurethane clear coat over the faces, and fixings that will not streak rust down the sign. Each layer of this program answered a specific failure mode of salt air.
A flat sign reads from one direction. The folded L-shape panels at Sydney Wharf read from both approaches along the boardwalk with a single sign — fewer poles, less clutter, same coverage.
Yes. Every family in this program was custom — sizes, colourways, pictograms and layouts were designed for the precinct, then produced with high-visibility reflective film so the rules stay legible at night.
In stages. The program went in across three planned visits, working pole by pole so the boardwalk stayed usable, with fixings chosen on the site survey for each mounting position.
